2-Bend Cattle Freestall Loop Divider

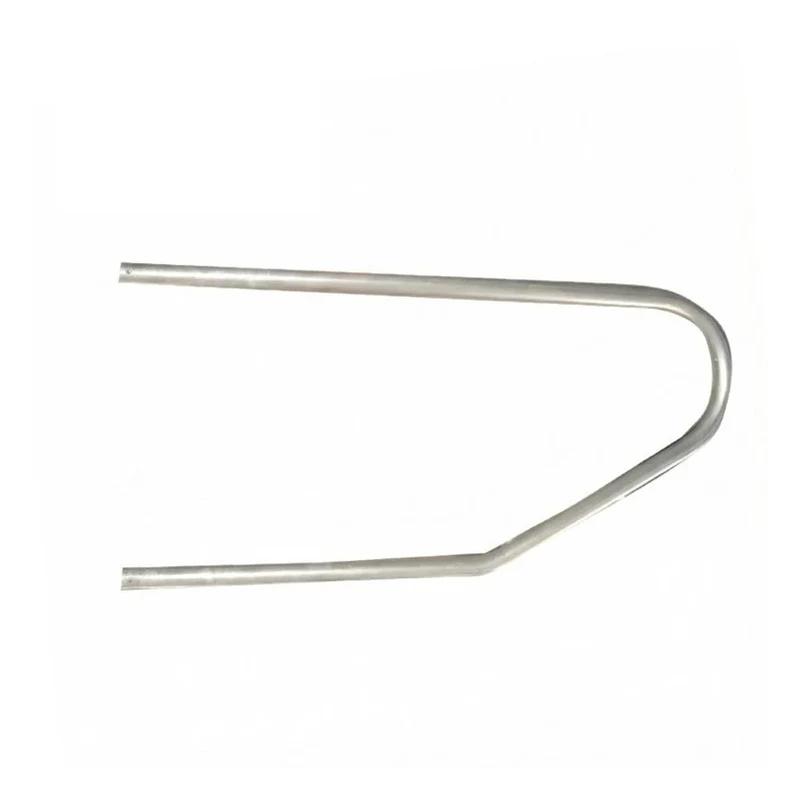

2-Bend Cattle Freestall Loop Divider photo 1
2-Bend Cattle Freestall Loop Divider photo 2
ASTM A123 Hot-Dip Galvanized • 40HQ Container Loadable

2-Bend Cattle Freestall Loop Divider

HS Code: 7326.90.85•Origin: Direct Factory Export, China

Heavy-duty 2-Bend Cattle Freestall Loop Divider for commercial cattle facilities. ASTM A123 galvanized steel, 40HQ container export packing. Get direct ...

Request 40HQ Container Proforma Invoice & CAD Drawing
✓Zero Field Welding Required
✓ASTM A123 ≥ 85 μm Zinc Bath
✓15-Year Rust Warranty
✓Full Container Seaport Clearance

Technical Specifications & Engineering Matrix

Steel SpecificationQ235B Structural Steel Tube (Wall Thickness 2.5mm - 3.5mm)
Galvanizing StandardASTM A123 / ISO 1461 Full Immersion (Zinc ≥ 85 μm)
Assembly Method100% Bolt-On Modular Connection
Anti-Corrosion Life20+ Years in Aggressive Livestock Environments

Engineering Highlights & Manufacturing Standards

  • ✓Cattle Cattle Stall Dividers Cattle Gates Cattle Feed Barriers Cattle Corral Panels Cattle Squeeze Chutes Cattle Brushes Cattle Water Drinkers Cattle Hay Feeders
  • ✓Calf Calf Housing Calf Feeding and Nursing Calf Pens
  • ✓Sheep Sheep Gates Sheep Feeding Barrier Sheep Handling System Sheep Turnover Crate Sheep Hurdles Sheep Feeding and Watering
  • ✓Horse Horse Stalls Horse Corral Panels Horse Feeding and Watering Horse Rubber Mats
  • ✓Pig Pig Penning System Pig Feeding System Pig Watering System Pig Flooring System Pig Handling Equipment
🏗️

Civil Foundation & Installation Guidelines

Structural mounting standards, concrete slab specifications, and anchor torque requirements.

Foundation Type
Elevated concrete stall platform, 2.40m to 2.60m total length, 200mm curb height above alley.
Mounting Posts
76mm heavy-gauge stanchion posts clamped to 48mm / 60mm continuous horizontal support rails.
Stall Spacing
1.15m to 1.25m center-to-center spacing per cow (accommodating mature 650-750 kg Holstein cows).
Curb & Bedding Slope
2.0% downward slope from brisket locator to rear curb for urine drainage.
⚖️

Direct OEM Equivalent vs Western Brands

Direct factory alternative to Teemore Engineering, DeLaval Cow Cubicles & Promat Stabling

benchmark brand
Teemore Engineering, DeLaval Cow Cubicles & Promat Stabling
direct equivalent
StockQuip Heavy-Duty Ergonomic Freestall Loop Divider Series
structural parity
2-bend, 3-bend, and 4-bend comfort curves; unobstructed forward lunging zone; flexible mounting height neck rail clamps.
steel grade comparison
60.3mm OD x 3.25mm or 3.65mm heavy-wall seamless bending pipe, hot-dip galvanized internally and externally to ISO 1461.
price advantage
Direct factory export pricing delivers 45-50% savings per stall position compared to European distributors.
📐

Animal Welfare & Barn Layout Engineering Guidelines

Standard clearance requirements, herd stocking density, and ergonomic livestock flow.

Animal Welfare Standards
Complies with University of Wisconsin Dairy Modernization and German DLG comfort standards.
Neck Rail Height
Adjustable between 110cm and 127cm above stall bed to accommodate herd hip height without forcing perching.
Brisket Locator
Low-profile 10cm brisket board positioned 170-178cm forward from curb to prevent diagonal lying without bruising forelimbs.
Lunging Space
Unobstructed 60-80cm forward lunge zone allows natural standing head-bob motion without hitting horizontal pipes.
🛡️

Biosafety Washdown & Preventive Maintenance Protocol

High-pressure wash tolerance, acid/alkali detergent resistance, and periodic lubrication intervals.

Washdown Protocol
Scrape and pressure-wash compatible; resistant to sodium hydroxide manure wash and lime bedding powders.
Clamp Bolt Torque
Annual inspection of M12 cross-clamps; retorque to 70 N·m to prevent neck rail slippage.
Base Protection
Inspect post anchor bolts and apply epoxy mastic at concrete splash zone every 3-5 years.
Mattress Fastening
Check rear curb mattress hold-down strips for loose fasteners bi-annually.
⚙️

Consumables & Wear Parts Lifecycle Matrix

Material grades, anticipated operating hours, and standard factory replacement kits.

Heavy-Duty Cross Clamps
6mm ductile iron / pressed steel two-piece clamping saddles with grade 8.8 galvanized bolts.
Brisket Board Brackets
Galvanized heavy angle brackets with recessed coach screws.
Post Anchor Kits
M16 x 140mm hot-dip galvanized wedge expansion anchors (3 anchors per post foot).
Plastic End Plugs
UV-stabilized HDPE friction plugs to seal open pipe ends from moisture ingress.
Neck Rail Sleeves
Heavy galvanized internal sleeve joiners with recessed set screws.
Packaging & Export Logistics

Maritime 40HQ & 20GP Container Loadability

Engineered with flat-pack nesting sub-frames to maximize maritime container cubic meters.

40′ High Cube (40HQ)
Max flat-pack container loading with steel banding
20′ General Purpose (20GP)
Standard modular pallet load
Packaging Method
Steel Pallet / Nesting Bundle with Protective Foam Edging
Assembly Requirement
Modular Bolt-On / Pin-Together (<30 mins per unit)

Planning a multi-item shipment? Combine this model with corral panels, gates, and waterers to maximize container cube utilization.

Frequently Asked Commercial & Technical Questions

Q1:What international manufacturing and galvanizing standards apply to the 2-Bend Cattle Freestall Loop Divider?

The 2-Bend Cattle Freestall Loop Divider is engineered using high-tensile structural steel (Q235/Q355) and hot-dip galvanized in full compliance with EN ISO 1461, ASTM A123, and AS/NZS 4680 standards. Our automated galvanizing bath delivers an average coating thickness exceeding 85 microns (>500 g/m² zinc mass), ensuring over 20 years of maintenance-free service in high-ammonia barn environments.

Q2:How is this unit packaged for maritime container export to prevent transit damage?

All components are pre-kitted, nested, and strapped to custom heavy-duty steel transit cradles. Critical mating points and hinges are cushioned with dense EPDM foam protectors, and bundled units are dimensioned specifically to maximize cube utilization in 40HQ maritime containers, allowing direct forklift offloading at your destination warehouse.

Q3:Can StockQuip customize dimensions and bracket fixtures to fit existing barn posts?

Yes. Over 60% of our export volume involves OEM customization. We manufacture custom bracket clamp collars, modified post spacing, and specialized latching configurations based on your CAD drawings or site survey dimensions. Full mill test certificates and 3D installation drawings are provided prior to mass production.

Looking for Wholesale Container Supply for Your Project?

Contact our foreign trade engineering team. We supply complete barn drawings, container packing manifests, and competitive CIF quotes to any major commercial seaport.

Request Custom CAD & PricingEmail Official RFQ
