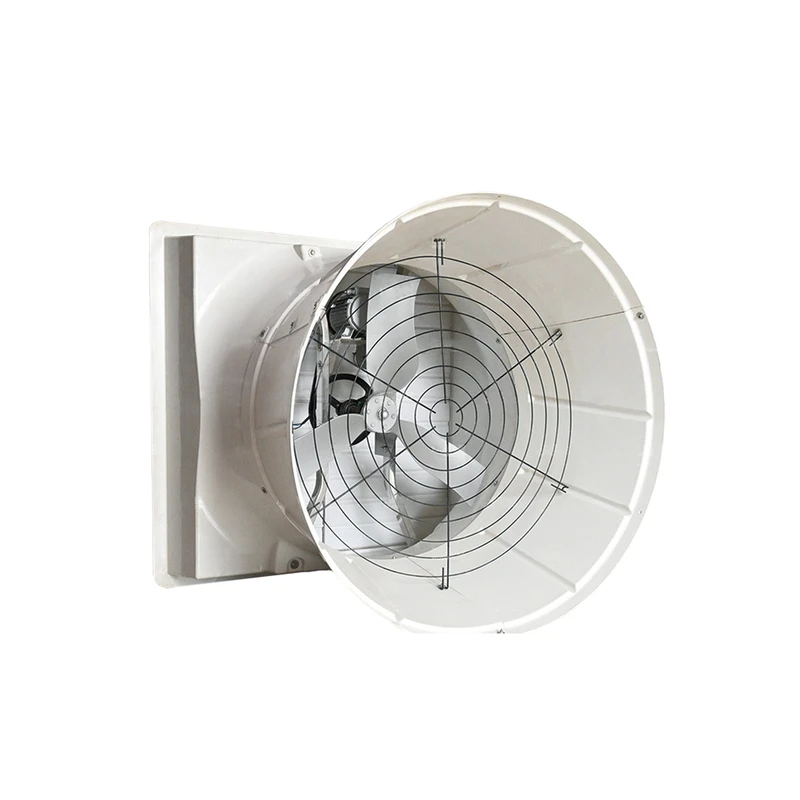

Fiberglass Cone Exhaust Fan 54 Inch
Heavy-duty Fiberglass Cone Exhaust Fan 54 Inch for commercial ventilation facilities. ASTM A123 galvanized steel, 40HQ container export packing. Get dir...
Technical Specifications & Engineering Matrix
| Fan Diameter & Impeller | 54 Inch (1,370mm) aerodynamic 3-blade nylon-fiberglass composite impeller |
| Overall Frame Dimensions | 1,460mm (W) × 1,460mm (H) × 1,180mm (Depth including discharge cone) |
| Airflow @ 0.05" Static Pressure | 27,500 CFM (46,720 m³/h) [BESS Lab Verified Performance] |
| Airflow @ 0.10" Static Pressure | 24,800 CFM (42,135 m³/h) [Working Tunnel Ventilation Pressure] |
| Airflow Efficiency Ratio | 21.2 CFM/Watt @ 0.05" SP / 16.8 CFM/Watt @ 0.10" SP |
| Airflow Load Ratio | 0.72 (maintains exceptional throughput under dirty pad / high resistance conditions) |
| Electric Motor Spec | 1.5 HP (1.1 kW) Premium Efficiency TEFC motor, IP55, Class F insulation, 380V/220V 50/60Hz |
| Impeller Blade RPM | 580 RPM balanced rotation delivering ultra-low vibration and bearing longevity |
| Housing & Cone Material | Heavy compression molded SMC fiberglass with UV-stabilized anti-yellowing resin |
| Discharge Shutter System | Aerodynamic butterfly discharge cone shutters with magnetic catch closures |
| Noise Level | Operating noise under 69 dB(A) at 3 meters distance |
Engineering Highlights & Manufacturing Standards
- ✓Molded SMC fiberglass housing and butterfly discharge cone resist severe ammonia corrosion.
- ✓Direct-drive high-efficiency permanent magnet motor delivers airflow exceeding 52,000 m³/h at 0 Pa.
- ✓Aerodynamic nylon-fiberglass composite blades certified by BESS Lab.
Civil Foundation & Installation Guidelines
Structural mounting standards, concrete slab specifications, and anchor torque requirements.
Direct OEM Equivalent vs Western Brands
Direct factory alternative to Munters / Aerotech WM54F / Multifan Vplus 54"
Animal Welfare & Barn Layout Engineering Guidelines
Standard clearance requirements, herd stocking density, and ergonomic livestock flow.
Biosafety Washdown & Preventive Maintenance Protocol
High-pressure wash tolerance, acid/alkali detergent resistance, and periodic lubrication intervals.
Consumables & Wear Parts Lifecycle Matrix
Material grades, anticipated operating hours, and standard factory replacement kits.
Transit Protection & Rapid Modular Field Assembly
Components are secured in protective steel cradles to safeguard galvanized coatings, engineered for 100% bolt-on assembly without field welding.
Need custom farm layout drawings or dimensional adaptation for existing buildings? Our engineering team provides complimentary CAD planning.
Inquire Engineering Team →Frequently Asked Commercial & Technical Questions
Q1:What international manufacturing and galvanizing standards apply to the Fiberglass Cone Exhaust Fan 54 Inch?
The Fiberglass Cone Exhaust Fan 54 Inch is engineered using high-tensile structural steel (Q235/Q355) and hot-dip galvanized in full compliance with EN ISO 1461, ASTM A123, and AS/NZS 4680 standards. Our automated galvanizing bath delivers an average coating thickness exceeding 85 microns (>500 g/m² zinc mass), ensuring over 20 years of maintenance-free service in high-ammonia barn environments.
Q2:How is this unit packaged for maritime container export to prevent transit damage?
All components are pre-kitted, nested, and strapped to custom heavy-duty steel transit cradles. Critical mating points and hinges are cushioned with dense EPDM foam protectors, and bundled units are dimensioned specifically to maximize cube utilization in 40HQ maritime containers, allowing direct forklift offloading at your destination warehouse.
Q3:Can StockQuip customize dimensions and bracket fixtures to fit existing barn posts?
Yes. Over 60% of our export volume involves OEM customization. We manufacture custom bracket clamp collars, modified post spacing, and specialized latching configurations based on your CAD drawings or site survey dimensions. Full mill test certificates and 3D installation drawings are provided prior to mass production.
