Cattle Self-Locking Headlock for 3 Cows

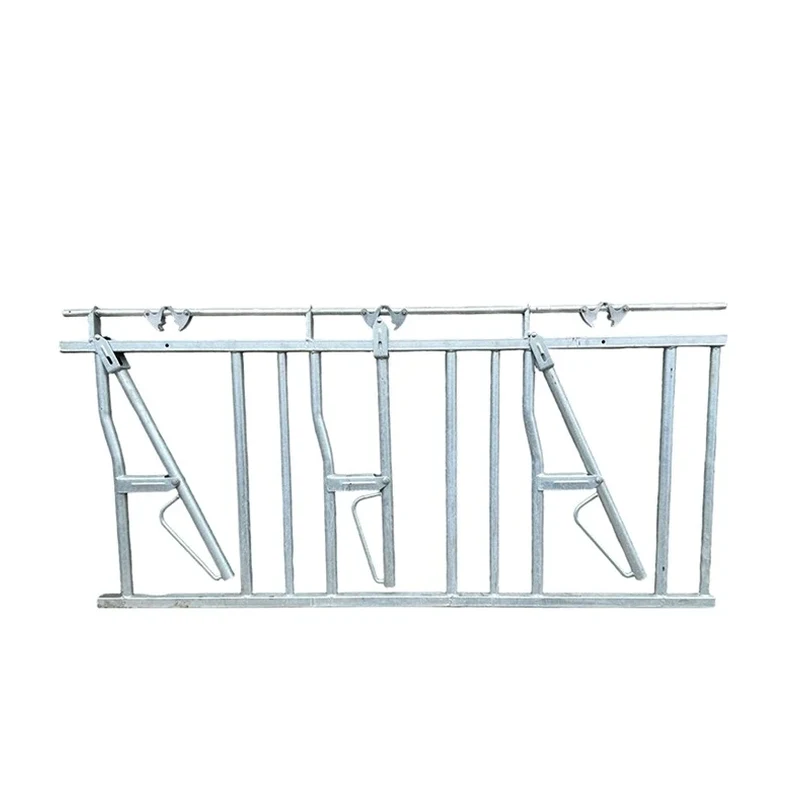

Cattle Self-Locking Headlock for 3 Cows photo 1
Cattle Self-Locking Headlock for 3 Cows photo 2
ASTM A123 Hot-Dip Galvanized • 40HQ Container Loadable

Cattle Self-Locking Headlock for 3 Cows

HS Code: 7326.90.85•Origin: Direct Factory Export, China

Heavy-duty Cattle Self-Locking Headlock for 3 Cows for commercial cattle facilities. ASTM A123 galvanized steel, 40HQ container export packing. Get dire...

Request 40HQ Container Proforma Invoice & CAD Drawing
✓Zero Field Welding Required
✓ASTM A123 ≥ 85 μm Zinc Bath
✓15-Year Rust Warranty
✓Full Container Seaport Clearance

Technical Specifications & Engineering Matrix

Steel SpecificationQ235B Structural Steel Tube (Wall Thickness 2.5mm - 3.5mm)
Galvanizing StandardASTM A123 / ISO 1461 Full Immersion (Zinc ≥ 85 μm)
Assembly Method100% Bolt-On Modular Connection
Anti-Corrosion Life20+ Years in Aggressive Livestock Environments

Engineering Highlights & Manufacturing Standards

  • ✓Cattle Cattle Stall Dividers Cattle Gates Cattle Feed Barriers Cattle Corral Panels Cattle Squeeze Chutes Cattle Brushes Cattle Water Drinkers Cattle Hay Feeders
  • ✓Calf Calf Housing Calf Feeding and Nursing Calf Pens
  • ✓Sheep Sheep Gates Sheep Feeding Barrier Sheep Handling System Sheep Turnover Crate Sheep Hurdles Sheep Feeding and Watering
  • ✓Horse Horse Stalls Horse Corral Panels Horse Feeding and Watering Horse Rubber Mats
  • ✓Pig Pig Penning System Pig Feeding System Pig Watering System Pig Flooring System Pig Handling Equipment
🏗️

Civil Foundation & Installation Guidelines

Structural mounting standards, concrete slab specifications, and anchor torque requirements.

Foundation Type
Reinforced concrete feed manger curb, 200mm width, 150-250mm height above standing floor (depending on herd breed).
Mounting Posts
102mm octagonal or 76mm round structural posts cast directly into curb (300mm depth) or baseplate mounted with 4x M14 anchors.
Post Spacing
Standard 3.0m (4-5 head) or 6.0m (7-8 head) centers between structural building columns or dedicated support stanchions.
Feed Manger Slope
5-degree forward curb incline toward cow bed; throat-to-neck height set at 1150-1250mm.
⚖️

Direct OEM Equivalent vs Western Brands

Direct factory alternative to Jourdain Safety IV / Teemore Engineering

benchmark brand
Jourdain Safety IV / Teemore Engineering
direct equivalent
StockQuip Self-Locking Cattle Headlock Series
structural parity
Downward emergency uncoupling for fallen cows; individual and gang-locking control lever; molded elastomer noise dampers.
steel grade comparison
60.3mm OD x 3.25mm structural pipe frame with 42.4mm moving arms, hot-dip galvanized to EN ISO 1461 (>500 g/m² zinc).
price advantage
Save 42% on landed container orders vs French/Irish brands, with 100% interchangeable clamp brackets.
📐

Animal Welfare & Barn Layout Engineering Guidelines

Standard clearance requirements, herd stocking density, and ergonomic livestock flow.

Animal Welfare Standards
Complies with European Council Directive 98/58/EC and Dairy Australia welfare guidelines.
Anti-Suffocation Release
Bottom pivot emergency swing opens up to 420mm width to prevent choking when a cow collapses in the lock.
Noise Attenuation
Polyurethane silence dampener pads eliminate metal-on-metal clang, maintaining milking barn noise <65 dB.
Throat Comfort
Smooth curved neck clearance bar prevents throat brisket bruising and esophagus compression.
🛡️

Biosafety Washdown & Preventive Maintenance Protocol

High-pressure wash tolerance, acid/alkali detergent resistance, and periodic lubrication intervals.

Washdown Protocol
High-pressure washdown compatible up to 2,000 PSI; acid descaling safe for lactic and citric acid sanitizers.
Gang Control Rod
Bi-annual alignment inspection of the 25mm gang-locking control rod to ensure smooth 180-degree rotation.
Corrosion Prevention
Bitumen or polyurethane sealing compound recommended at the concrete-to-steel junction line.
Drop-Latch Check
Weekly physical test of top gravity drop-latches to verify zero stiffness from feed dust.
⚙️

Consumables & Wear Parts Lifecycle Matrix

Material grades, anticipated operating hours, and standard factory replacement kits.

Elastomeric Silence Dampers
Injection molded UV-stabilized polyurethane noise absorbers (lifespan 5-7 years).
Drop Latch Pins
Case-hardened zinc-plated steel locking pins with stainless return pins.
Post Clamp Brackets
6mm pressed steel saddle clamps with M12 grade 8.8 hot-dip galvanized U-bolts.
Gang Rod Couplers
Galvanized ductile iron universal joints for connecting adjacent 6m sections.
Bottom Pivot Sleeves
Heavy-wall nylon 66 self-lubricating sleeves.
Packaging & Export Logistics

Maritime 40HQ & 20GP Container Loadability

Engineered with flat-pack nesting sub-frames to maximize maritime container cubic meters.

40′ High Cube (40HQ)
Max flat-pack container loading with steel banding
20′ General Purpose (20GP)
Standard modular pallet load
Packaging Method
Steel Pallet / Nesting Bundle with Protective Foam Edging
Assembly Requirement
Modular Bolt-On / Pin-Together (<30 mins per unit)

Planning a multi-item shipment? Combine this model with corral panels, gates, and waterers to maximize container cube utilization.

Frequently Asked Commercial & Technical Questions

Q1:What international manufacturing and galvanizing standards apply to the Cattle Self-Locking Headlock for 3 Cows?

The Cattle Self-Locking Headlock for 3 Cows is engineered using high-tensile structural steel (Q235/Q355) and hot-dip galvanized in full compliance with EN ISO 1461, ASTM A123, and AS/NZS 4680 standards. Our automated galvanizing bath delivers an average coating thickness exceeding 85 microns (>500 g/m² zinc mass), ensuring over 20 years of maintenance-free service in high-ammonia barn environments.

Q2:How is this unit packaged for maritime container export to prevent transit damage?

All components are pre-kitted, nested, and strapped to custom heavy-duty steel transit cradles. Critical mating points and hinges are cushioned with dense EPDM foam protectors, and bundled units are dimensioned specifically to maximize cube utilization in 40HQ maritime containers, allowing direct forklift offloading at your destination warehouse.

Q3:Can StockQuip customize dimensions and bracket fixtures to fit existing barn posts?

Yes. Over 60% of our export volume involves OEM customization. We manufacture custom bracket clamp collars, modified post spacing, and specialized latching configurations based on your CAD drawings or site survey dimensions. Full mill test certificates and 3D installation drawings are provided prior to mass production.

Looking for Wholesale Container Supply for Your Project?

Contact our foreign trade engineering team. We supply complete barn drawings, container packing manifests, and competitive CIF quotes to any major commercial seaport.

Request Custom CAD & PricingEmail Official RFQ
