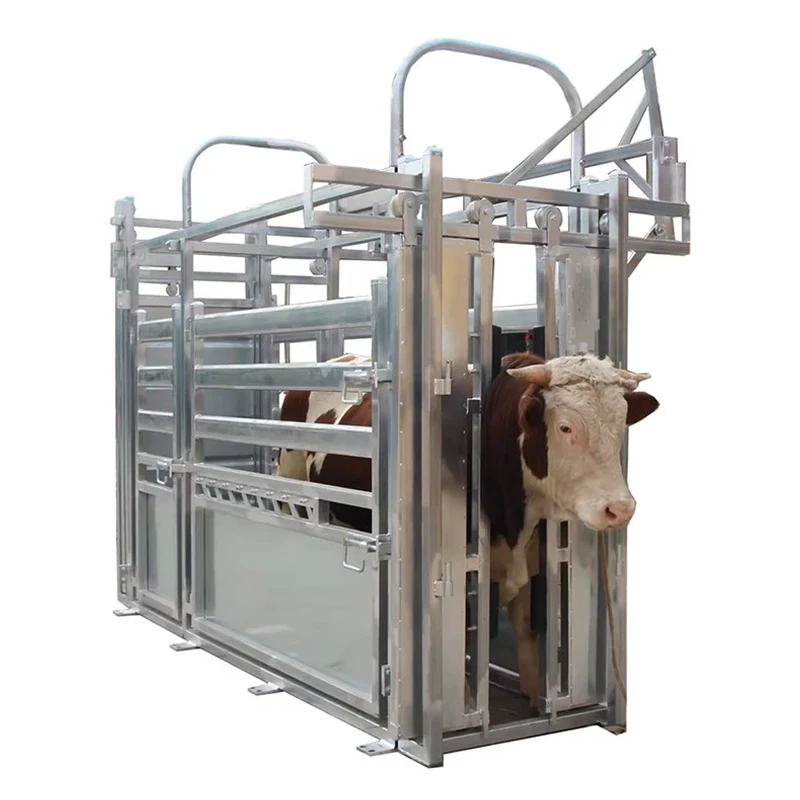

Heavy Duty Cattle Squeeze Chute
Heavy-duty Cattle Squeeze Chute for commercial cattle facilities. ASTM A123 galvanized steel, 40HQ container export packing. Get direct factory quote on...
Technical Specifications & Engineering Matrix
| Overall Frame Dimensions | 3,200mm (L) × 1,450mm (W) × 2,250mm (H) |
| Chute Internal Width | 800mm (31.5 in) constant interior width from top to bottom |
| Bilateral Squeeze Range | Infinite adjustment from 195mm (calves) to 750mm (large bulls) |
| Operating Hydraulic Pressure | 900 - 1,000 PSI (Internal Relief Valve preset to 1,000 PSI / 69 bar) |
| Hydraulic Oil Flow Rate | 6.2 GPM (Gas Power Pack) to 10.9 GPM (7.5 HP 3-Phase Electric Motor) |
| Structural Steel Profile | Q235B 100×50×3.5mm base chassis, 50×50×3.0mm access door tubes |
| Galvanizing Specification | Total immersion hot-dip galvanized coating ≥ 85 μm (Zinc mass ≥ 610 g/m²) |
| Emergency Neck Release | Downward drop-away neck extension release for fallen animals |
| Operating Noise Damping | Heavy-duty 8mm composite rubber pads on latches (Clatter noise < 68 dB) |
| Total Machine Net Weight | 1,450 kg (Heavy structural chassis preventing floor lift during squeeze) |
Engineering Highlights & Manufacturing Standards
- ✓Cattle Cattle Stall Dividers Cattle Gates Cattle Feed Barriers Cattle Corral Panels Cattle Squeeze Chutes Cattle Brushes Cattle Water Drinkers Cattle Hay Feeders
- ✓Calf Calf Housing Calf Feeding and Nursing Calf Pens
- ✓Sheep Sheep Gates Sheep Feeding Barrier Sheep Handling System Sheep Turnover Crate Sheep Hurdles Sheep Feeding and Watering
- ✓Horse Horse Stalls Horse Corral Panels Horse Feeding and Watering Horse Rubber Mats
- ✓Pig Pig Penning System Pig Feeding System Pig Watering System Pig Flooring System Pig Handling Equipment
Civil Foundation & Installation Guidelines
Structural mounting standards, concrete slab specifications, and anchor torque requirements.
Direct OEM Equivalent vs Western Brands
Direct factory alternative to Arrowquip The General / Q-Catch Hydraulic Series
Animal Welfare & Barn Layout Engineering Guidelines
Standard clearance requirements, herd stocking density, and ergonomic livestock flow.
Biosafety Washdown & Preventive Maintenance Protocol
High-pressure wash tolerance, acid/alkali detergent resistance, and periodic lubrication intervals.
Consumables & Wear Parts Lifecycle Matrix
Material grades, anticipated operating hours, and standard factory replacement kits.
Transit Protection & Rapid Modular Field Assembly
Components are secured in protective steel cradles to safeguard galvanized coatings, engineered for 100% bolt-on assembly without field welding.
Need custom farm layout drawings or dimensional adaptation for existing buildings? Our engineering team provides complimentary CAD planning.
Inquire Engineering Team →Frequently Asked Commercial & Technical Questions
Q1:What international manufacturing and galvanizing standards apply to the Heavy Duty Cattle Squeeze Chute?
The Heavy Duty Cattle Squeeze Chute is engineered using high-tensile structural steel (Q235/Q355) and hot-dip galvanized in full compliance with EN ISO 1461, ASTM A123, and AS/NZS 4680 standards. Our automated galvanizing bath delivers an average coating thickness exceeding 85 microns (>500 g/m² zinc mass), ensuring over 20 years of maintenance-free service in high-ammonia barn environments.
Q2:How is this unit packaged for maritime container export to prevent transit damage?
All components are pre-kitted, nested, and strapped to custom heavy-duty steel transit cradles. Critical mating points and hinges are cushioned with dense EPDM foam protectors, and bundled units are dimensioned specifically to maximize cube utilization in 40HQ maritime containers, allowing direct forklift offloading at your destination warehouse.
Q3:Can StockQuip customize dimensions and bracket fixtures to fit existing barn posts?
Yes. Over 60% of our export volume involves OEM customization. We manufacture custom bracket clamp collars, modified post spacing, and specialized latching configurations based on your CAD drawings or site survey dimensions. Full mill test certificates and 3D installation drawings are provided prior to mass production.
Looking for Wholesale Container Supply for Your Project?
Contact our foreign trade engineering team. We supply complete barn drawings, container packing manifests, and competitive CIF quotes to any major commercial seaport.
